Valet: Hybrid A* Across Four Vehicle Types

python
planning

A motion planning simulator that parks four vehicles of increasing difficulty — a holonomic point robot, a differential drive, an Ackermann car, and a truck towing a trailer — through randomly generated obstacle fields, using Hybrid A* search. Built for RBE 550 (Motion Planning) at WPI.

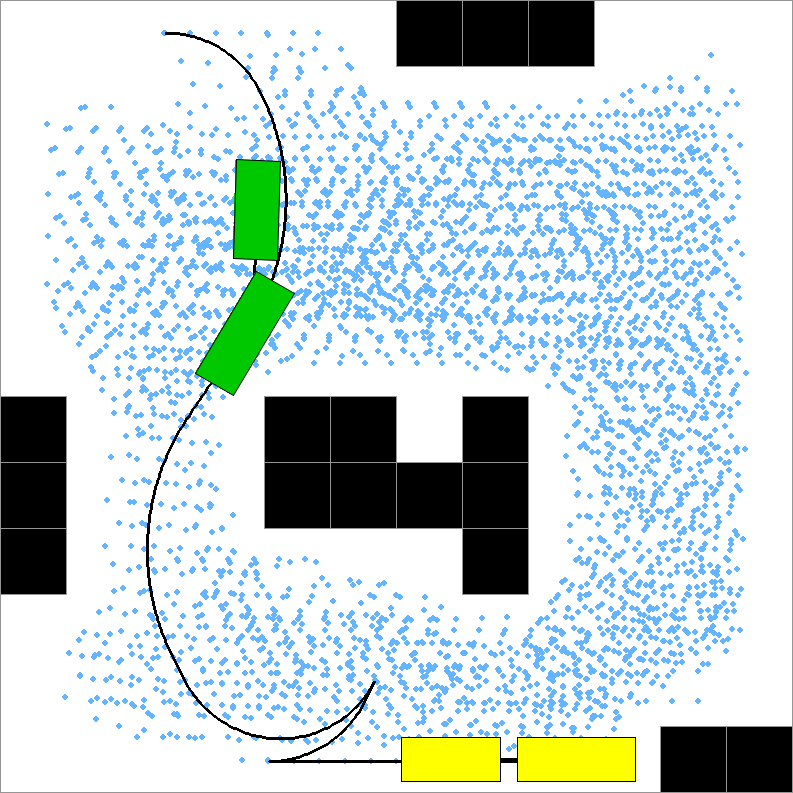

Simulator window showing a truck and trailer partway along a planned path through scattered obstacles — The trailer mid-playback. The traced path follows the rear axle; blue dots mark every state expanded during planning.

Full report (PDF) ↓ Explore the codebase ↓

The project doubled as a testbed for two experiments: Python’s structural typing (typing.Protocol and generics, inspired by Rust traits) to keep the four vehicle types interchangeable without an inheritance hierarchy, and Typst for the report — which came out deliberately excessive, because it was fun to make it so.

The Environment

Each run scatters tetrominoes across a fixed grid until 10% of it is occupied, storing the result twice: a NumPy boolean grid for cheap lookups and a Shapely STRtree for exact intersection tests. The vehicle starts in the top-left corner and must reach a goal pose in the bottom-right — for the car, a parallel-parking spot against the bottom wall.

Goal pose for the point robot — Goal poses: point robot, differential drive, Ackermann car, and trailer. The car’s spot is tuned so a genuine parallel-parking maneuver is both required and feasible.

Goal pose for the differential drive — Goal poses: point robot, differential drive, Ackermann car, and trailer. The car’s spot is tuned so a genuine parallel-parking maneuver is both required and feasible.

Hybrid A*

Hybrid A* is A* over a continuous state space: nodes carry exact $(𝑥, 𝑦, 𝜃)$ states (plus the trailer heading $𝜑$ when towing), and successors come from integrating sampled control inputs forward rather than stepping between grid cells. A discretized grid is used only for duplicate detection, so the search can’t churn through near-identical states forever.

A car footprint overlaid on a coarse grid used for duplicate detection — The 1 m duplicate-detection grid against the car footprint: continuous states, discrete visited-set.

Motion Primitives

Each expansion samples steering angles (or angular velocities, for the differential drive) crossed with forward/reverse. Holding the controls constant makes every primitive a circular arc, which has a closed-form solution — no numerical integration in the hot loop:

\begin{aligned} 𝑥 (𝑖) & = 𝑥_{0} + 𝑅 \cdot (sin (𝜃 (𝑖)) - sin (𝜃_{0})) \\ 𝑦 (𝑖) & = 𝑦_{0} - 𝑅 \cdot (cos (𝜃 (𝑖)) - cos (𝜃_{0})) \\ 𝜃 (𝑖) & = 𝜃_{0} + 𝜔 \cdot 𝑖 \cdot 𝑑 𝑡 \end{aligned}

where $𝑅 = 𝜈 / 𝜔$ is the signed turning radius. Ackermann and differential-drive kinematics both reduce to this same unicycle model; they differ only in which $𝑅$ values they can produce. The differential drive can hit $𝑅 = 0$ (spin in place), so it gets extra rotate-in-place primitives whose cost is pure heading change — without them the planner can’t exploit the drivetrain’s signature move.

Two plots of circular arc motion primitives fanning out from a car, forward arcs in blue and reverse arcs in orange — Primitives from one car state: five steering angles × forward (blue) and reverse (orange). Each arc extends just far enough to land in a new duplicate-detection cell.

The heuristic is the obstacle-ignorant Reeds-Shepp path length to the goal — admissible, and much tighter than Euclidean distance for vehicles with a minimum turning radius. Landing exactly on the goal pose through discrete primitives is unlikely, so once the search gets within a terminal radius it starts attempting “last shot” closed-form connections (Reeds-Shepp for the car and trailer, rotate-drive-rotate for the differential drive), gated by a probability that scales up as the distance shrinks — each attempt costs a full collision check of the candidate path, so it’s only worth trying where it’s likely to be clear.

Making Collision Checking Fast

Shapely was the correct-if-slow reference implementation: obstacles in an STRtree, vehicles as rotated polygons, exact intersection predicates. Profiling showed it dominating the runtime, so two optimizations were layered in front of it — chosen from cProfile data, not guesses.

Heading Cache

Rotating a Shapely polygon walks every vertex through a matrix multiply, and the planner was doing it nearly a million times per run. Instead, each vehicle’s footprint is pre-rotated to 72 headings (every 5°) at startup; a state query snaps to the nearest cached shape and defers the (cheap) translation until an exact check is actually needed.

Diagram of pre-rotated car footprints and the small angular discrepancy between a true footprint and its nearest cached shape — Left: three of the 72 cached footprints. Right: the worst case — a true footprint at 22.5° against the cached 20° shape. An error requires an obstacle to intersect exclusively one of the thin discrepancy slivers ( 3.5% of vehicle area).

AABB Rejection Filter

Cached alongside each footprint is its axis-aligned bounding box, so translating it to a state is an offset addition. The box is tested against the field boundary, then against the obstacle grid cells it covers — and only if a cell is occupied does the exact Shapely check run. The filter eliminates the vast majority of exact tests at negligible cost, and since it can only produce false positives, it costs no accuracy.

Diagram of a rotated car footprint inside its axis-aligned bounding box among grid obstacles — A footprint at 35° with its AABB. The purple obstacle overlaps the box but not the car — a false positive the exact check resolves. Grey obstacles are skipped without any geometry work.

Together the two changes produced a 3.98× end-to-end speedup (81.5 s → 20.5 s on a profiled trailer run), with rotate calls dropping from 974,294 to 3,622. The control in the comparison is propagate (primitive generation), which is untouched by either change and shows identical cost in both profiles.

Bar charts comparing call counts and CPU time of key functions in unoptimized and optimized profiles — Call counts (top) and exclusive CPU time (bottom) before and after the collision optimizations.

One more trick: entire primitive trajectories are validated by checking only every 4th state. At the simulation timestep the car moves 0.167 m between states — far less than its 5.2 m body — so consecutive footprints overlap almost entirely, and a collision missed at a skipped state is nearly certain to appear at a checked one. The final accepted path gets an exact full-resolution pass.

Overlapping car footprints along an arc with every fourth footprint outlined in orange — Footprints along a 20-step arc. Orange outlines mark the checked states; the faint blue ones between are subsumed by them.

The Trailer

The truck follows the same closed-form arcs as any Ackermann vehicle, but the trailer heading is coupled through a nonlinear ODE,

\dot{𝜑} = \frac{𝜈}{𝑀} sin (𝜃 - 𝜑)

where $𝑀$ is the hitch-to-axle distance — no closed form alongside the arc, so $𝜑$ is stepped through the precomputed truck states with Euler’s method. Any primitive that folds the rig past $| 𝜃 - 𝜑 | \geq 90 °$ is discarded as a jackknife, and last-shot connections are additionally rejected if the trailer arrives outside a heading tolerance.

Post-Processing

The raw search output is valid but ugly — the search optimizes for reaching the goal, not for looking like driving. Two passes fix it: probabilistic shortcutting (pick two random path indices, try a direct Reeds-Shepp connection, keep it if collision-free, repeat 100 times), then arc-length resampling so playback runs at constant velocity, with pure rotations resampled at their own angular rate.

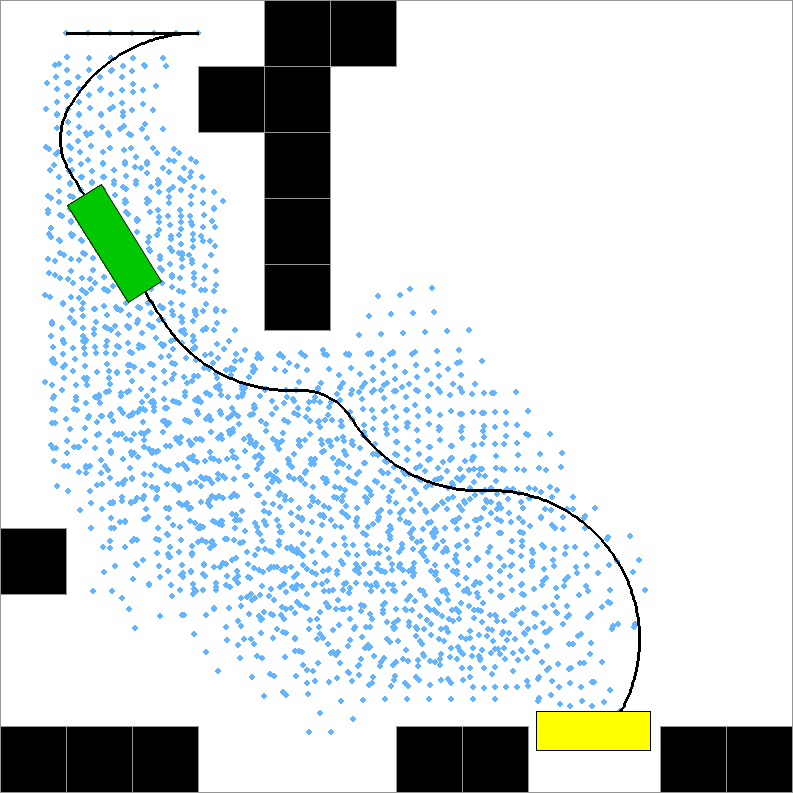

Planned car path before smoothing, with a wide detour — The same car path before and after shortcutting: the detour imposed by search order gets replaced by direct connections.

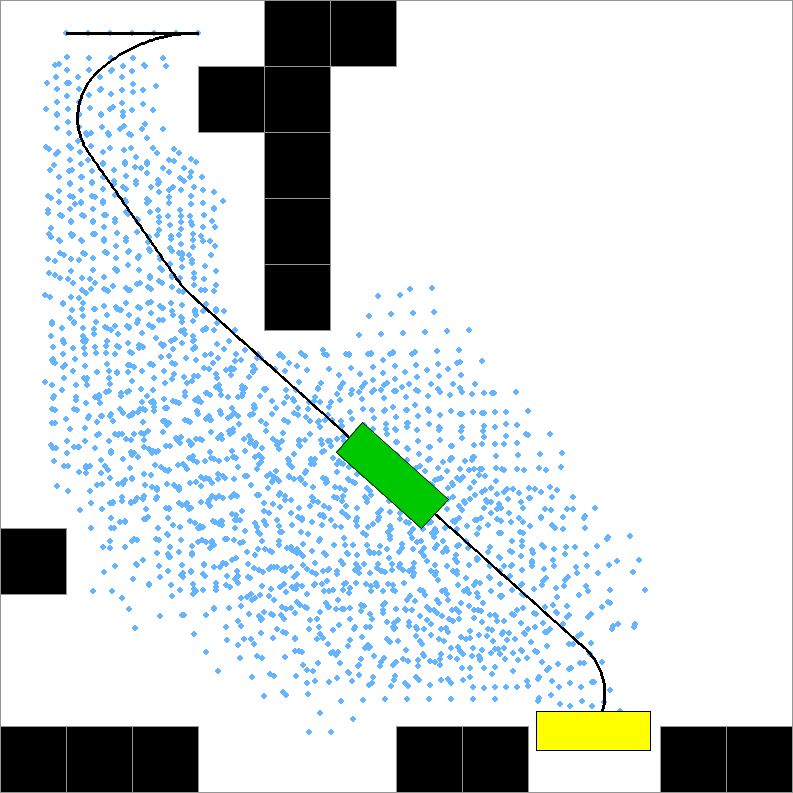

The same path after shortcutting, taking a direct route — The same car path before and after shortcutting: the detour imposed by search order gets replaced by direct connections.

Results

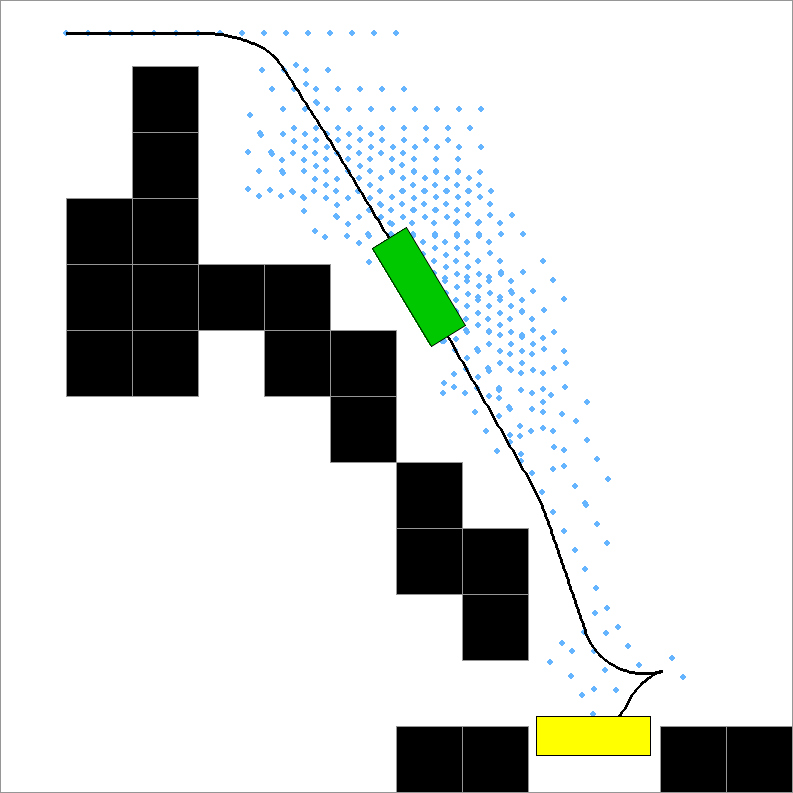

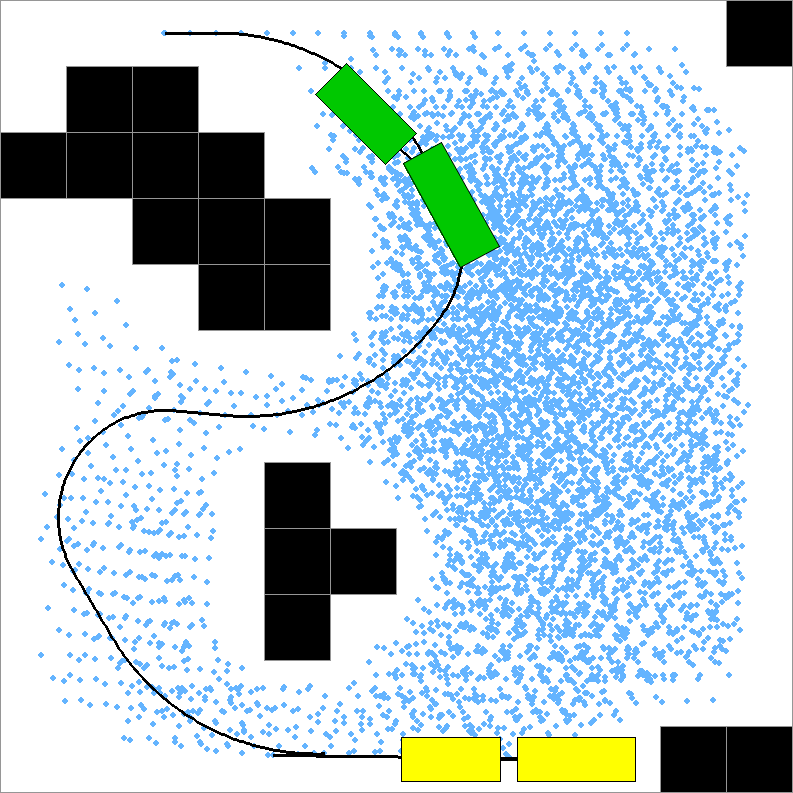

Completed point robot navigation — Completed runs for all four vehicles.

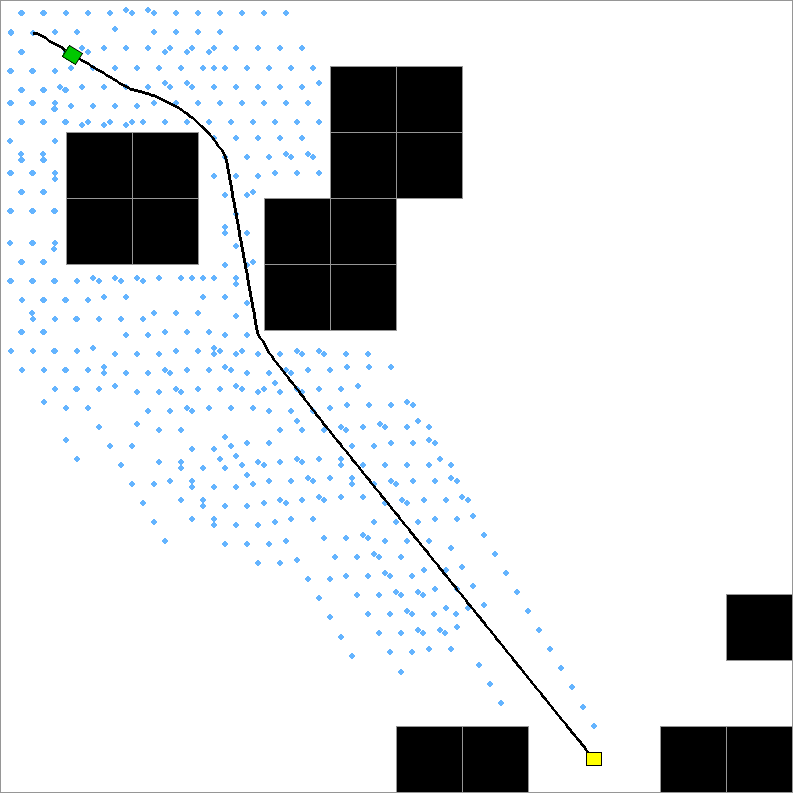

Completed differential drive navigation — Completed runs for all four vehicles.

Over 10 runs per vehicle at 10% obstacle density:

Vehicle	State dims	Success	Avg time	Avg expansions
Differential drive	$𝑥, 𝑦, 𝜃$	10/10	1.3 s	1930
Ackermann car	$𝑥, 𝑦, 𝜃$	8/10	1.3 s	1905
Trailer	$𝑥, 𝑦, 𝜃, 𝜑$	7/10	9.5 s	8548

The car’s misses trace to an unhandled edge case — its footprint occasionally spawns boxed in by obstacles. The trailer pays for its fourth state dimension and per-step ODE work, and some of its failures are genuine: layouts with no reachable path under the jackknife constraint. Failed runs exhaust the search space and terminate cleanly rather than hanging.

The typing experiment held up too: the Protocol-based vehicle interface kept all four vehicles swappable through one planner, and parameter tuning rarely broke anything unexpected. Whether the up-front type-system work paid for itself is debatable — but it survived contact with the trailer.
